CNC receiver AR15 (Skeletonized) - C NEW GEN

Worldwide shipping Your cart is empty Menu

CNC receiver

CNC receiver AR15 (Skeletonized) - C NEW GEN

CNC receiver AR15 (Skeletonized) - C NEW GEN
AIRSOFT PART, NOT FOR REAL GUN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
CNC receiver AR15 (Skeletonized) - C NEW GEN
371.43 $
In Stock
Item No.:
7173
EAN:
8596308071733
Guarantee:
24 months
Weight:
388 g
In Stock72 pcs

Popis: CNC receiver AR15 (Skeletonized) - C NEW GEN

CNC receiver (body) type C is inspired by real firearm AR15 (M4). This CNC receiver is manufactured from solid block of aircraft aluminium EN AW 7075 T651, which has better strength (590 MPa), than common construction steel (390 MPa). Thanks to the used material, this receiver has much higher durability than common casted zinc-aluminum alloy receivers. Manufacturing one of those CNC receivers requires a lot of time and material. CNC receivers have much more material on every part for best strength and resilience. Because of used material EN AW 7075 T651, our CNC receiver is very lightweight and resilient from braking. Because of reinforced parts on our receivers, uppers and lowers from other manufacturers are not interchangeable.

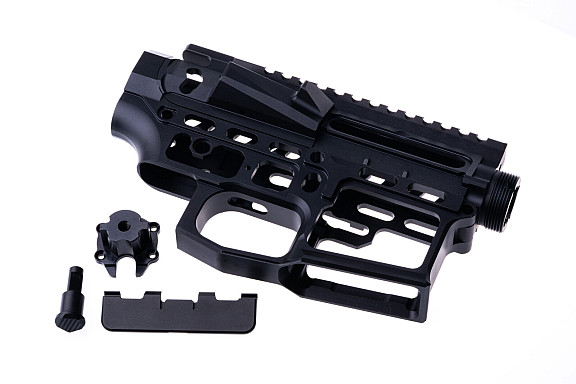

This version of CNC receiver Type C is Skeletonized. The shape is the same as type C, only difference is in lightening cuts in upper and lower part for lower weight, but mostly for appearance. A lot of people misjudge cuts in the receiver for danger of getting a lot of dirt and other things into the receiver and gearbox, but that is not the truth, we tested this receiver for a long time with different conditions without any issues.

Upper has milled RIS rail MIL-STD-1913. A charging handle can be used from an original replica, but we recommend getting our RetroArms charging handle from our store. Shell deflector and forward assist pin are milled together with Upper from one block of aluminum. The upper receiver has also a dust cover mounted on spring, which is in normally closed position (instead of normally open), but it can be easily opened to access the Hop Up Chamber. Handguard thread is M31.5x1.5 and there should not be a problem with installing Handguards of other manufacturers. Outer barrels can be used from our own offer, or from any other original replica, manufactured by Tokyo Marui standard.

The lower receiver is also milled from one solid block of aircraft aluminium EN AW 7075 T651 and is significantly reinforced, for best resilience and protection from braking. We recommend installing our V2 Gearbox into the lower receiver. We can't guarantee that gearboxes made by other manufacturers would work properly. For removing „metal" noises while firing, we recommend installing included rubber pads to the pre-milled slots, where they support gearbox and metal resonation will be removed. We enhanced space in the lower receiver for wiring, which leads into the handguard. Lower and Upper are connected by special wedge pins, which push against each other and both receiver parts are pushed together. This removes all play in the receiver and also all gaps which we know from alloy casted receivers. Thanks to all of this and also high quality material and manufacturing process, both of the receiver parts fit together perfectly.

Wedge pins are fixed with a screw, so with more screwing, there is more force on pins. There is no need for brute force (more information below) to be used. The center pin is also secured by a screw, so it will also not drop out.

Stock is installed on a special adaptor, which can take any standard TM AR15 buffer tube. The adapter can be replaced for either QSC adapter, or our CNC Buffer tube with bayonet mount can be installed.

Any AR15 (M4) Pistol Grip can be installed, if it is manufactured by Tokyo Marui standards.

All receiver accessories like endplate, forward assist pin, magazine catch, bolt catch, fire selector cover, fire selector can be changed with any other standard parts from original replicas, or you can use CNC ones from our offer. We recommend installation of our CNC Fire Selector, because it has precise selection, smooth move and works perfectly in any fire modes. Also use of our endplate is recommended.

This CNC Receiver is sandblasted with synthetic corundum and is protected with hard anodizing. The EN AW 7075 T651 material is very hard to anodize due its high strength and hardness, common anodizing process can't reach deep enough in the surface. If we didn't anodize products manufactured from this material, there would be a huge risk of corrosion (big gray spots with rotten look). Thanks to the sandblasting process the surface is matte. After purchase, we recommend treating the surface with a little bit of oil on a cloth. This process will allow the surface to absorb some of the oil and will leave a nice dark and uniform finish.

Change Log Lower:

  • Reworked shape of the rear radius and pistol grip seating - now more grips are compatible and better seated on the body
  • A protrusion / fence added on the left side of the body around the magazine release - protection against unintentional magazine release
  • Reworked shape of the magazine release groove and added rim in the front of the groove as a stop for the magazine release
  • Reworked shape of the oval for magazine release button
  • Reworked shape, position and depth of the indentations for fire selector
  • At the bottom and in the rear there are 3 precise contact surfaces, which hold the gearbox in-axis.
  • Adjusted position of the middle pin - now the body hole is tangentially with the gearbox hole and pushes the gearbox down and to the rear on the contact surfaces
  • Rubber pads added to mitigate metal resonation while firing
  • Reworked shape for fire selector cover on the right side
  • Added recess in the top part of the rear arc to allow easier gearbox installation
  • Added pockets for horizontal gearbox allignment
  • Added grooving on the front of the magazine well
  • Added hole in the rear round part for possibility to adjust rear endstop on our latest gearboxes with the gearbox still in receiver
  • Lots of small design adjustments (chamfers, radii, moved surfaces, adjusted shape connecting etc.)

Change Log Upper:

  • Adjusted play between upper and lower receiver
  • Spring pin for Forward assist replaced by M3x16 Set screw
  • Reinforced top part under the RIS rail
  • Chamfered edge under the RIS rail to mitigate scratching charging handle
  • Enlarged bevel for charging handle latch
  • Reworked positioning of a charging handle
  • Added 2 RIS slots
  • Adjusted grooves for outer barrel centering pins
  • Enlarged groove for front-wired setups
  • Lots of small design adjustments (chamfers, radii, moved surfaces, adjusted shape connecting etc.)

CNC receiver can be installed as a replacement for original alloy casted receiver in Tokyo Marui standard. During installation of the gearbox don't use brute force. Use max 1 Nm tightening moment on screws, otherwise the screws can be pulled off. There is no need of tightening screws with brute force, if you want to be sure that screws won't get loose, use thread glue or color.

Installation of CNC receiver and gearbox requires professional knowledge, experience and skills. There are a lot of airsoft manufacturers on the market and every one of them creates their own dimensions, there are no standards like engineering ISO in airsoft. This is the main problem with a lot of inner and outer parts from different manufacturers which can be the same product, but with different dimensions. We recommend using only parts from manufacturers with Tokyo Marui compatible parts.

Recommended receiver assembly procedure:

  1. Insert a gearbox into the lower receiver with glued rubber pads
  2. Install middle pin
  3. Install Pistol grip and lightly tighten the screws (they will be tightened later)
  4. Install upper receiver and use horizontal alignment mechanism to align and tighten the gearbox
  5. Take off upper receiver and tighten the pistol grip
  6. Install rear body pin
  7. Install QSC insert into the Buffer tube mount
  8. Assembly the rest of your replica based on your preference

Package includes: CNC Lower, CNC Upper, CNC Wedge Pins, CNC Stock Adaptor, CNC Center Pin, CNC Forward Assist, Dust Cover, Set of screws, Dust Cover Pin, Forward Assist spring, Dust Cover spring.
