CNC gearboxes

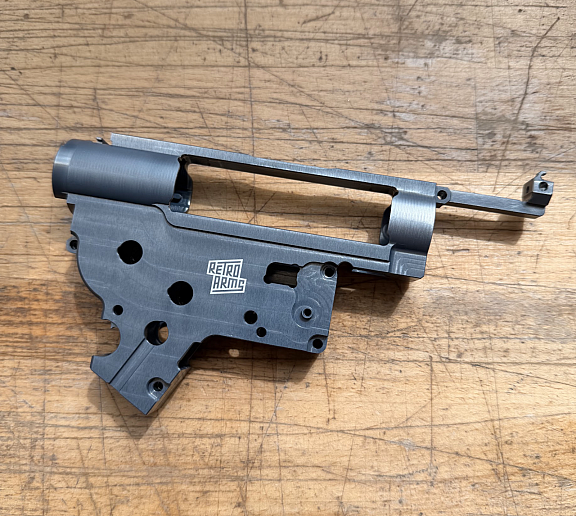

CNC gearbox M4,416 TM NGRS (8mm)
Popis: CNC gearbox M4,416 TM NGRS (8mm)
Package contains gearbox, all necessary screws and spring guides
For TM NGRS 416D
For TM NGRS 416C
For TM NGRS 417
For TM NGRS M4
Compatible with Leviathan by Jefftron
Compatible with original NGRS parts
Compatible with Titan from Gate
Designed for PandoRA gears by RetroARMS
Changelog:
Differnces between our old gearbox and 2024 gearbox
- reinforcing the integrity of the mechabox around the pistol grip
- enlarging the holes for cables
- enalrging front hole for cables for 416C compatibility
- better cable routing around motor axis - added groove and nose as on V2 mechabox
- improved bearing bore drilling - more accurate bore and larger tolerances on bearing diameters
- enlarged grooves for the switch backdrop - only technological modification for RA
- enlarged cylinder bore
- Redesigned cylinder bore relief - created for maximum strength
- Redesigned cylinder mounting on 4 support points instead of full length- greater compatibility with multiple manufacturers
- enlarged piston groove for increased gearbox life
- Edge removal - previously a cable routing issue
- Removal of radius - previously a problem with bolt movement
- reinforcement around the cylinder in the rear
- spring guide together with mechabox in package to ensure full compatibility with retro arms piston
